Computational Fluid Dynamics techniques were used to investigate the flow
induced by a rotating magnetic drive in an experimental test facility. The work initially
examined the global flow within the disk system before focusing on the flow
local to the read-and-write head unit. The aim of the project was to investigate whether flow
disturbances were the source of high frequency oscillations that were evident
in the results obtained from the facility.
Both the global and local flow analysis presented challenges due to the
complex nature of the governing flow physics. The global flow analysis showed
the characteristics of the flow within the facility and the general
nature of the flow local to the head. The analysis identified
the origin of low and mid-range frequency flow disturbances, but did not provide
information on the very high frequency content of the system. A literature review
identified empirical correlations that suggested that the high frequencies
observed could be the result of vortex shedding from the read-and-write
head and its positioning structure.
Vortex shedding from a magnetic drive read-and-write head

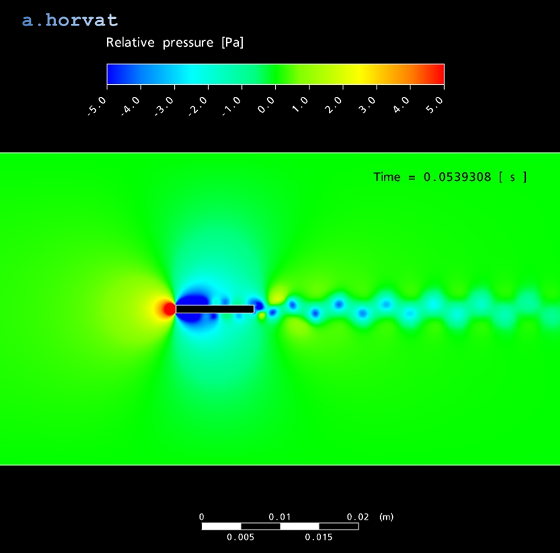

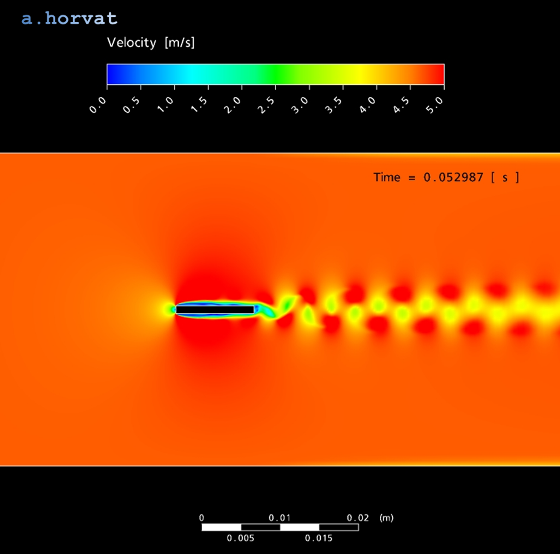

CFD analysis was conducted for a 2D rectangular plate subjected to cross-flow conditions. The
length of the plate was 10 times its height. Two different flow cases were examined
with the Reynolds number of 200 and 300, respectively. The results showed strong
vortex shedding behaviour with Strouhal Number of 1.2 and 1.5, respectively. Similar values
can be found in open literature [1] for the applied range of flow parameters.
